- Structure and supporting base
- Suction filter group
- Air decantation unit from solid residue
- Spraying system with 10 lt tank
- Pumping system with pump and agitator
- 3 air and liquid pipes,
- Gun
- Unit: rotating cup containment MODULE up to 60 lt
MODULE containment rotary cup up to 90 liters - Forced ventilation module / 90 ° drying
- Forced ventilation module / 145 ° drying
- Including cup insulation
- Opening and unloading module
- Liquid weigher interfaced with PLC for weight stop
- 1 Spare cup of 30 or 60 or 90 lt
- General control panel and protections,
- Panel with mechanical timers
- Panel View display
- With touch screen up to 100 mem. + usb x back-up
- The machine complies with ATEX regulations:
- The machine complies with ATEX regulations:
- Electrical parts far from the potentially dangerous area according to regulations;
- Lower maximum settable temperature;
- Earthing cables on all joints and canceled all potential causes of sparking;
- Pipes for the material with double coating;
- Safety redundancy, including double aspirator for solvents present in the cup;
- Certification with expertise for ATEX regulations
COATING MACHINES made by us are suitable for:

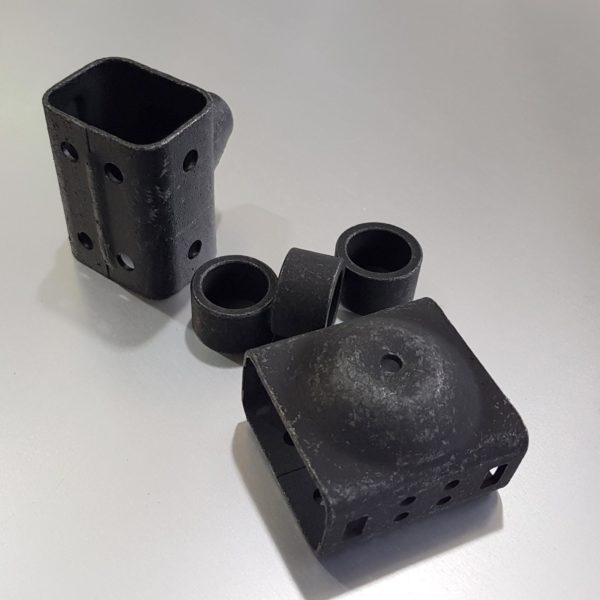

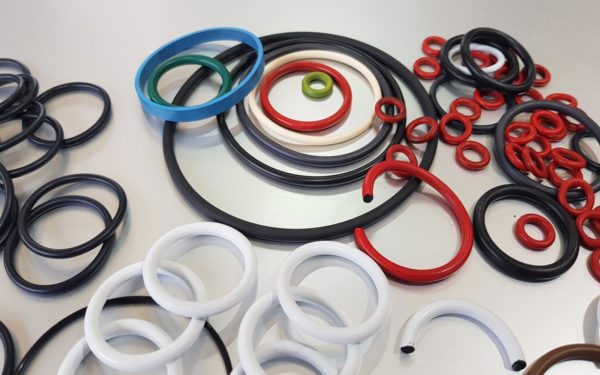

- Spray external covering products on rubber pieces with semi-permanent or permanent coating;
- The treated piece does not alter its sealing capacity;
- The part acquires a high sliding capacity on the tracks of the automatic parts assembly machines;
- The treatment can be semi-permanent or permanent depending on the product used in spraying and pre-treatment;
- The coating does not interfere with food, paint, or other liquids in contact with the OR. (If FDA approved coating is used);
- Minimum thicknesses.
